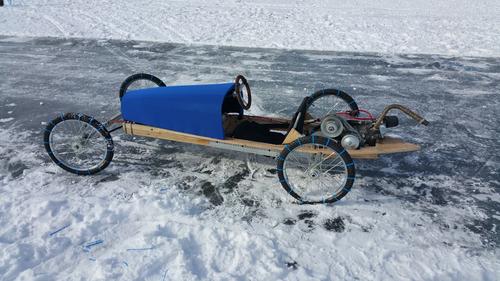

So while perusing I came upon this cyclekart with a wood frame similar to what I am trying to come up with. It's a little lighter than I dare build for around here, but the basic frame design has given me some great ideas. The simplicity of it has made my design a lot easier to put together as there is a minimum of wood bending. The suspension is much like where I am at layout wise although the axle set up will be quite different they are both straight axle. Interesting engine compartment also, but I would definitely reinforce that with metal.

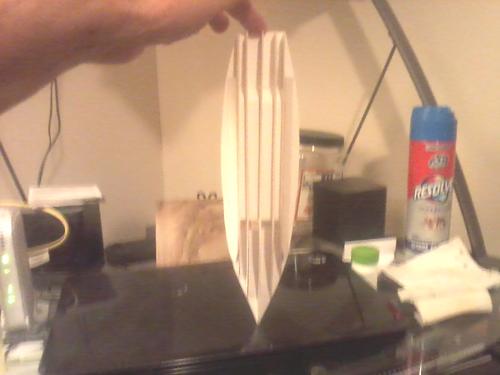

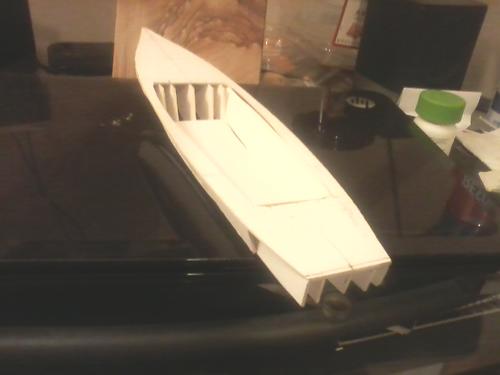

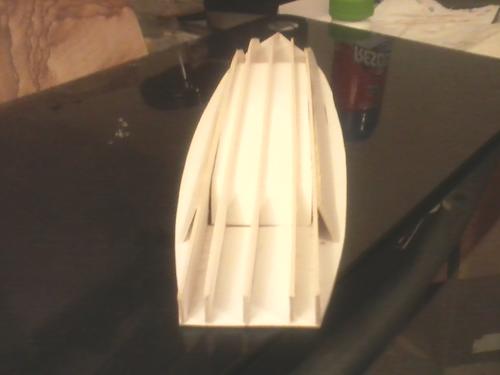

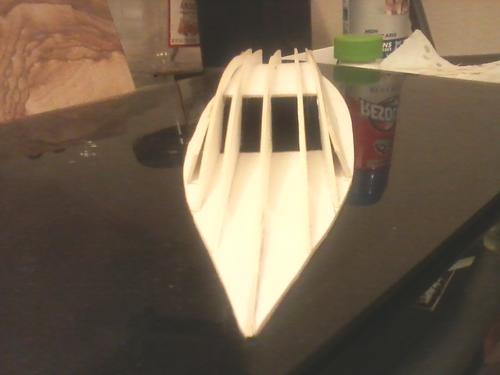

Well I drew, scaled, schemed, ranted, and cried, but finally decided on a plywood chassis. I built a somewhat to scale model of the main substructure to evaluate the stiffness on each axis and it's pretty much come up fine. Still some bulkheads to mock-up and seat back will be part of the bottom structure. I'm trying to get all of the structural strength built into the lower half of the car except for the dash/seat back and a solid support stringer between those. Also there will be sheet metal truss along the lengths of plywood which are lacking support. The flat end of the model will be the front. Remember this is only a proof of concept design and very rough. Now if I can just get the photo's over here..........
