Front Springs

Michael Richard — Posted on The Cyclekart Club
Wednesday October 9, 2019 7:50 PM

Got the front springs sorted today. They're only mounted with threaded rod and nuts so now off to the hardware store for some real (ah-hum) hardware. Started the rear spring mounts and got the parts laid out for the front friction shocks/radius arms. Still in the infancy stages on the rear suspension, but she'll get sorted.

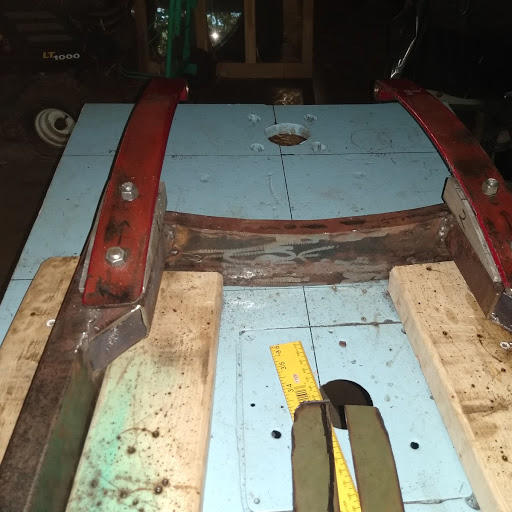

frontspringstop

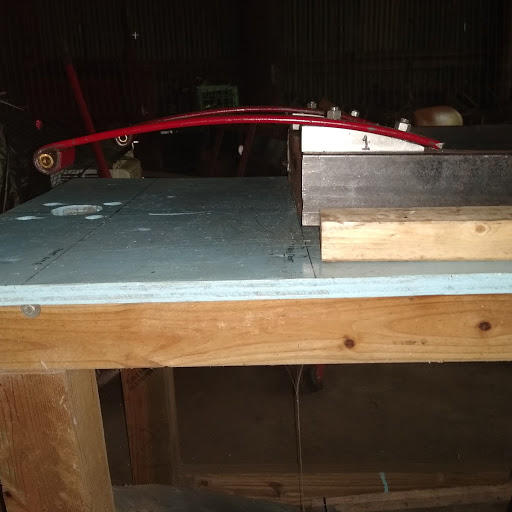

frontspringsside

frontspringsmounted

Member Comments on Journal Entry: Front Springs ↵

No comments have been posted yet...

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Spring Mounting

Michael Richard — Posted on The Cyclekart Club
Sunday October 6, 2019 4:57 PM

Worked a bit on the front suspension today. Got them mocked up and temporarily mounted with just one bolt to see how the main sail sets , as they say.

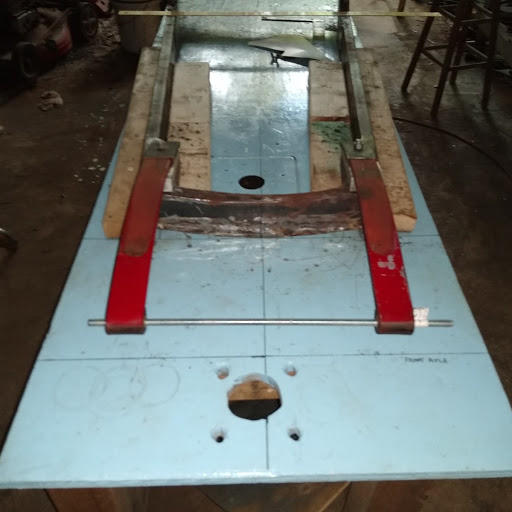

mail 18

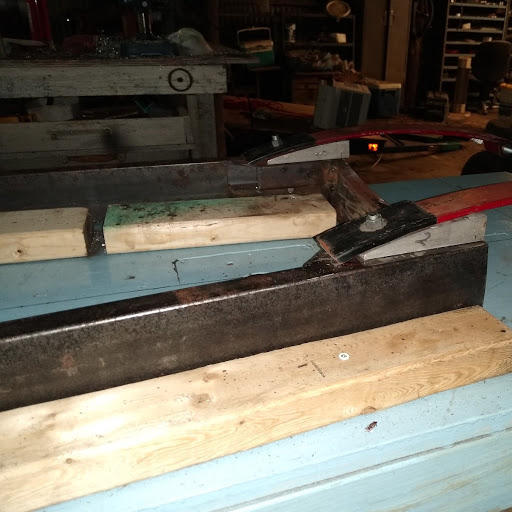

mail 19

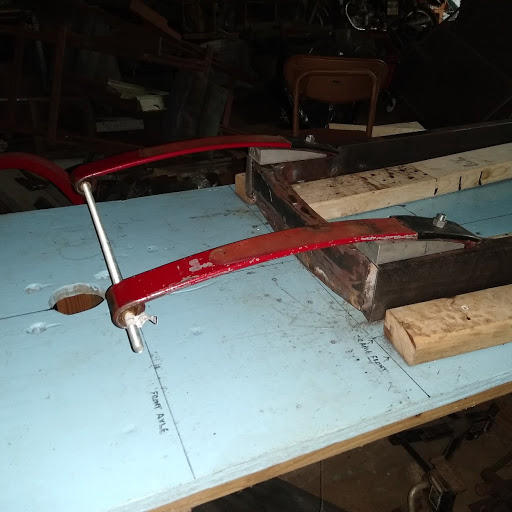

mail16

Member Comments on Journal Entry: Spring Mounting ↵

No comments have been posted yet...

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Front Leaf Spring Frame Mounts.

Michael Richard — Posted on The Cyclekart Club
Wednesday October 2, 2019 4:54 PM

Fretted over how to do this and still look somewhat original. After studying the photo's a small difference shouldn't be too noticeable and this extra width ensures the spring cradles are flush down on the frame when mounted. Or something...maybe.......sort of.......I think.

mail 13

mail 15

mail12

Member Comments on Journal Entry: Front Leaf Spring Frame Mounts. ↵

No comments have been posted yet...

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

And So On...

Michael Richard — Posted on The Cyclekart Club
Saturday September 21, 2019 5:03 PM

More framework.

mail (4)

mail (6)

mail (8)

mail (9)

Member Comments on Journal Entry: And So On... ↵

No comments have been posted yet...

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

I've Been Framed!

Michael Richard — Posted on The Cyclekart Club
Thursday September 19, 2019 7:07 PM

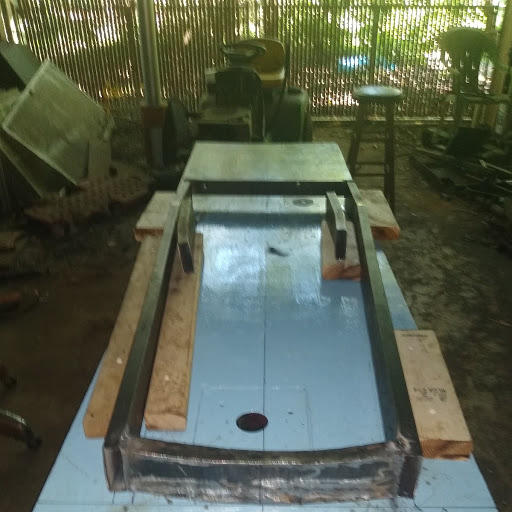

Got most of the forward portion of the frame welded up today. Still have to weld up the rear riser/spring mounts. Included also are the photo's of the front frame cross-brace. Finally starting to look like something.

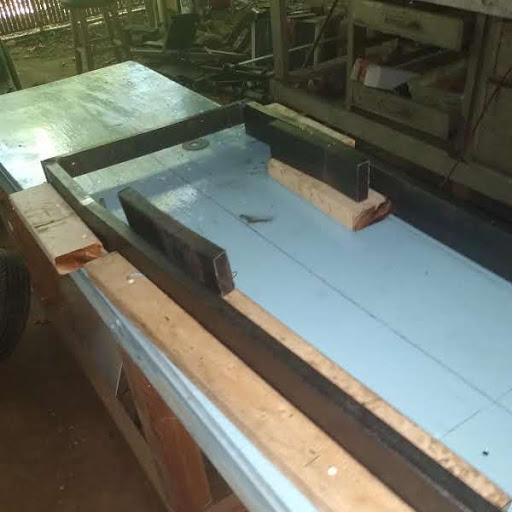

mail (3)

mail (2)

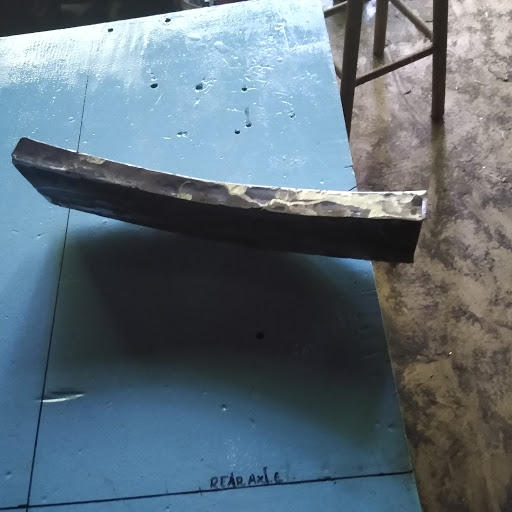

mail (1)

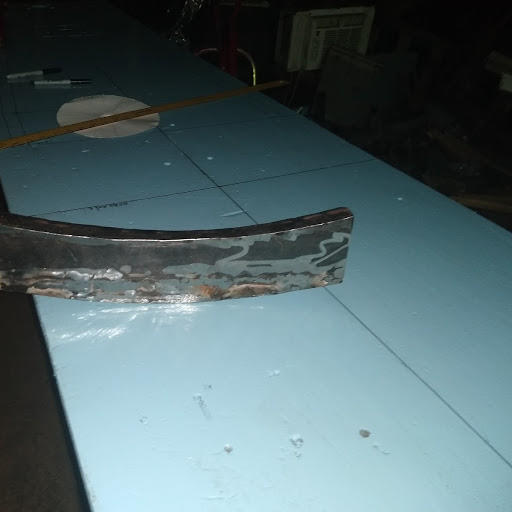

mail

Member Comments on Journal Entry: I've Been Framed! ↵

No comments have been posted yet...

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Frame Beginnings

Michael Richard — Posted on The Cyclekart Club
Monday September 16, 2019 3:54 PM

Got the frame nose cross-brace fabbed up today with the dip that is on the original car. I cut an arc piece out of the top and welded it on the bottom. I cut it 1/8 inch proud on both ends to account fot the diagonal of the frame rails. Then welded up sheet steel over the open top and bottom. Forgot to get a pix so it will be easier to understand when I get that photo, probably tomorrow.
