We Have A Rollor! And Card Board!

Brian C — Posted on The Cyclekart Club
Saturday April 11, 2015 9:40 PM

Cleaned the shop. Put some pieces together and it rolls!
Checked with level and it's right on! I love it when a plan comes together!
Looked so good I had to keep going so I then worked on the body layout some more. Put a cooler were the seat will be to check for size feels good.
needed more clamps so I used some old plastic hangers that have clips
Worked nicely.

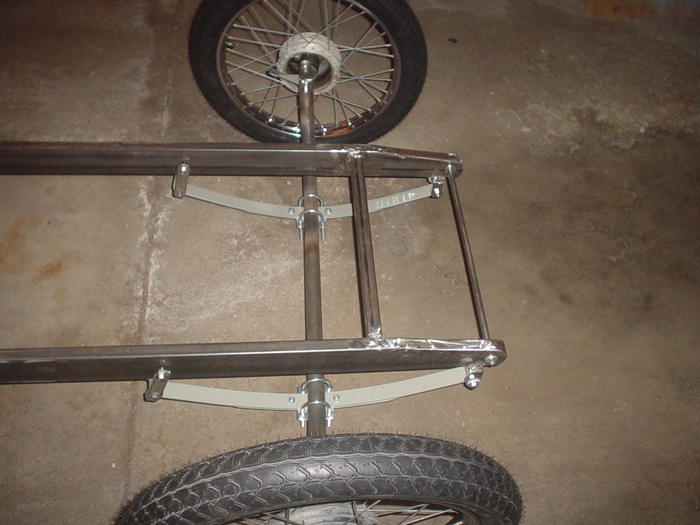

Springs and things

She's a rollor!

looks like a car

White hanger clips

Member Comments on Journal Entry: We Have A Rollor! And Card Board! ↵

2015-04-12 06:00:46 # 25278

Comment by Mike Poinsett

Looks great, Brian. Amazing what a little cardboard can do. Nice job on the rear drive set up. I like the jack shaft idea. Great work!Mike

2015-04-12 06:20:45 # 25279

Comment by Todd Hildebrandt

Very nice!

2015-04-12 07:42:29 # 25281

Comment by Tim Zager

Love the progress Brian.

2015-04-12 20:46:16 # 25323

Comment by Don Nothwang/c

lookin good brian,dont stop now!!!!

2015-04-12 21:27:45 # 25324

Comment by Ron Little

Brian, are you building a type 59? If so, would you a be willing to share some info

2015-04-12 21:29:07 # 25325

Comment by Ron Little

Brian, are you building a type 59? If so, would you a be willing to share some info

2015-04-12 22:10:01 # 25328

Comment by Brian C

Ron,Based on a type 37 more or less , What wound you like to know?

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

More Cardboard Fun!

Brian C — Posted on The Cyclekart Club
Tuesday April 7, 2015 5:27 PM

Started Laying out the body with cardboard
Still making some changes till it looks right.
Tried standing in cockpit for size and, it put a smile on my face.
Rolling kart will be next, after I make some room in shop.

Here's the ruff layout.

DSC04149

Member Comments on Journal Entry: More Cardboard Fun! ↵

2015-04-07 21:15:43 # 25181

Comment by Mike Poinsett

Looking good, Brian. Starting to look like a real car now. The fun continues.

2015-04-08 02:19:51 # 25182

Comment by Dennis Thomas

Looking at your mock up put a smile on MY face! Excellent.

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Engine Mount And Spring Hangers Welded.

Brian C — Posted on The Cyclekart Club
Monday April 6, 2015 7:09 PM

Was busy this past week laying out and welding the engine / jack shaft mount.
also welded on the spring hangers.

Frame so far.

Member Comments on Journal Entry: Engine Mount And Spring Hangers Welded. ↵

2015-04-06 22:54:15 # 25147

Comment by Don Nothwang/c

Should have waited to weld the engine mount till the frame was done,may have to move or adjust for seating purposes or even chain alignment.I had to make several changes on mine till it fit right

2015-04-07 17:11:48 # 25169

Comment by Brian C

Thanks for the input DonI have already Aligned with the engine mounted and aligned jack shaft axle and torque converter with wheel axle. also allowed for adjustment of chain. I keep taking apart so I can move to my welding table.

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Frame Progress, Tack Welded Today

Brian C — Posted on The Cyclekart Club
Saturday March 21, 2015 11:00 PM

Nice day today so, I worked on Tacking together my frame.
took about 2 hrs in prep time clamping ,leveling, making sure rails were square.
This was the hard part because my Frame is not a rectangle, the front is smaller then the back. I had to match the angles at the weld points.Looks like it worked
out OK.

Prepping

Front veiw

Back Veiw

Member Comments on Journal Entry: Frame Progress, Tack Welded Today ↵

2015-03-22 14:21:23 # 24816

Comment by Don Nothwang/c

Beware,when welding the front brace up,put a temp brace between the front of the frame.Mine wanted to bend in when I welded it

2015-03-22 14:33:15 # 24817

Comment by Brian C

Don,Thanks for the info I will do that for my final frame weld.

2015-03-22 21:56:37 # 24833

Comment by Dennis Thomas

looking good!

2015-03-22 22:15:10 # 24834

Comment by Brian S

Hi Brian..If you measure the diagonals then hold the frame in place with tie down straps i found this also works when welding..Cheers Brian S..

2020-09-27 12:41:55 # 66380

Comment by Alan Geddes

Tack and cool tack and cool. Heat is not your friend and clamps are

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Wind Shield Work.

Brian C — Posted on The Cyclekart Club
Saturday March 7, 2015 4:34 PM

Cut my plexiglass for my Wind shield today and installed in frame.
I used some tubing for shims to center in frame.
Setting with clear silicone.
I should have taped around the glass first because I got some on the plexiglass.
I will remove the shims and silicone the rest when set.

Wind sheild complete.

Member Comments on Journal Entry: Wind Shield Work. ↵

No comments have been posted yet...

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Tires Mounted.

Brian C — Posted on The Cyclekart Club
Saturday February 21, 2015 6:38 PM

Mounted the tires on the rims over the past few days, what a workout.
Just like mounting bike tires only more leverage needed and a bit of soap and water. Used the harbor freight tire irons, worked well. Purchased Michelin M62 tires at $19 each. Great reviews they look like nice tires good fit.

Tires ready to roll

Member Comments on Journal Entry: Tires Mounted. ↵

2015-02-21 19:32:27 # 24157

Comment by Edgar Bertazzoni

Tires look great.
