Frame Table

Todd Hildebrandt — Posted on The Cyclekart Club
Monday April 20, 2015 9:06 PM

Took a build tip from Dennis (been doing a lot of that) and bought some 3/4" counter top press board for frame layout. Got all the cross members penciled in on the board along with the axle locations.

WP 000561

WP 000560

WP 000562

WP 000563

Member Comments on Journal Entry: Frame Table ↵

No comments have been posted yet...

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Frame Rails Shaped

Todd Hildebrandt — Posted on The Cyclekart Club
Sunday April 19, 2015 10:24 PM

Friday I was able to start closing in the taper on one of the fronts. Today they are all done.

Front frame rail

Rounded rear rail

Cross members next

WP 000558

Member Comments on Journal Entry: Frame Rails Shaped ↵

2015-04-20 05:24:48 # 25496

Comment by Mike Poinsett

Nice job, Todd. Great workmanship.

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Hump Day In The CK Workshop

Todd Hildebrandt — Posted on The Cyclekart Club
Wednesday April 15, 2015 7:08 PM

As promised, the outer hub plate that was finished last night. (forgot camera in the house)

Today I was able to trim the frame and shape it. Tomorrow I'll see if I can get a 1/16x15/16 strap to weld the frame shut.

outer hub plate

Front frame horn

Rear frame horn

Member Comments on Journal Entry: Hump Day In The CK Workshop ↵

No comments have been posted yet...

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Rear Hubs

Todd Hildebrandt — Posted on The Cyclekart Club
Tuesday April 14, 2015 8:03 PM

Yesterday I drove 80 miles to a friends shop to trade a stainless tank for some lathe and mill time/lessons. We cut down the center hubs for axle nut clearance. Then I got a lesson on setting up work in a 4 jaw chuck. So the asuza hubs went in the lathe and were turned down to fit the Honda wheels. One is nice and snug the other is a hair loose.

Today I mocked up the stylized hood so you guys could see what I'm talking about. It may be a little long, better than short.

Another task from today was outer bolt plates. I want to sandwich the Honda hub between the asuza hub and the outer plate. The plate should be 4 5/8 inch but I had some 4 3/8 inch circles in 1/4 inch. Found the center then hit it with the 1 7/8 inch hole saw. The plate will ride on the 4 ribs and around the hub, it will be trimmed down flush with plate. Pictures of that tomorrow.

WP 000549

WP 000548

Stylized hood

Member Comments on Journal Entry: Rear Hubs ↵

2015-04-14 20:25:30 # 25371

Comment by Don Nothwang/c

Thats what I did with mine,works great!!!

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Frame Work

Todd Hildebrandt — Posted on The Cyclekart Club
Monday April 13, 2015 6:57 AM

Got the chevy off the lift and organized the shop a little bit, time to start the frame.

I remembered a trick a late friend of mine (Ron would've loved CK's) did making hot rods, tag board templates. Taking an empty cereal box I layed out the frame profile, remember to account for the thickness of the frame rail.

The next trick is to put down tape to transfer the the cut lines.

I set the rails up and started playing with the widths. It getting narrower than first thought. I also put the tractor nose up for a quick visual.

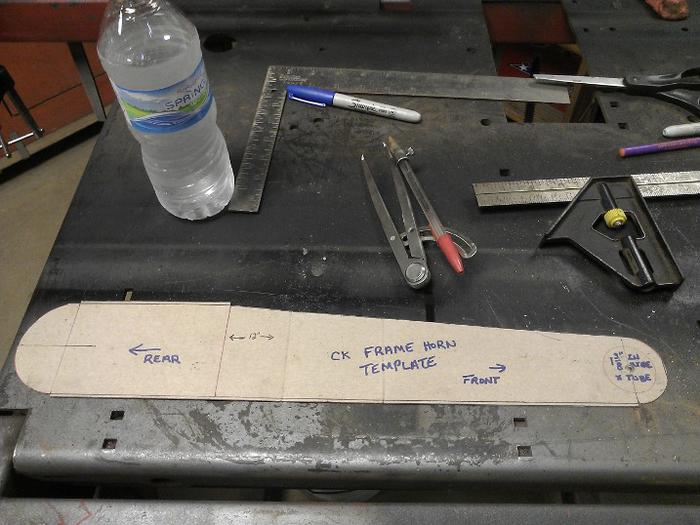

Tag board template

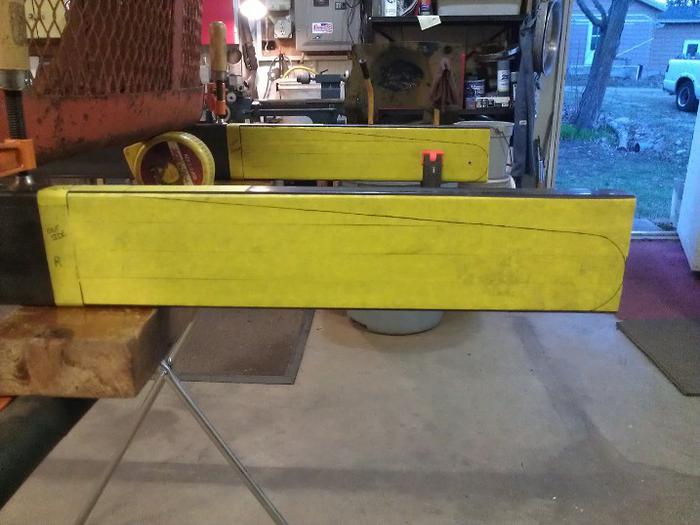

Front frame layed out

Rear frame layed out

Setting the grille on

Member Comments on Journal Entry: Frame Work ↵

2015-04-13 08:11:42 # 25337

Comment by Mike Poinsett

Todd, I love the front grille. What tractor is that from and how wide is it?

2015-04-13 09:57:04 # 25339

Comment by Todd Hildebrandt

Allis Chalmers WD 19" wide. I also have the stylized hood.

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Shackles Finished

Todd Hildebrandt — Posted on The Cyclekart Club
Sunday April 12, 2015 8:59 PM

Had some solid round stock to make the bungs for the frame to carry the shackle. When the lathe started the belt snapped. Finally got a new drive belt and finished that project today.

drilling out the frame bung

shackles
