I was going to cut up a wood 2x4 for jigging my frame. Then at work I find a bunch of boards from the karate class in the trash. Took them to dad's and ripped them 2 1/2" wide. After screwing two pieces together in an L shape they were screwed to the lay out board. A witness line was marked at the front axle center line to help get the rails back in place quickly after drilling them.

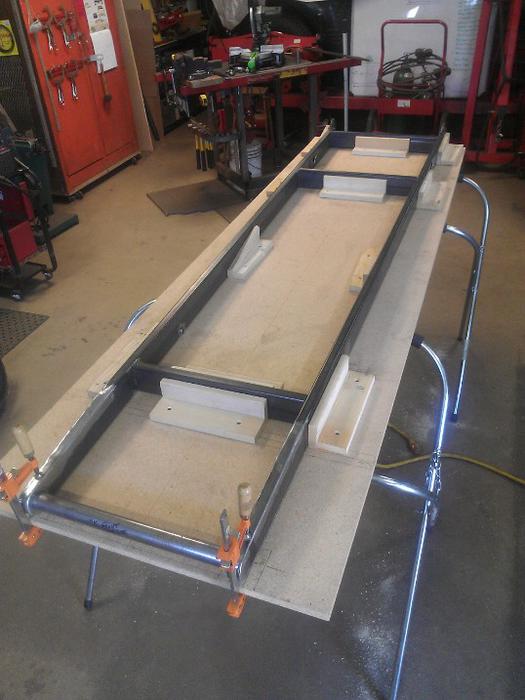

ready to weld

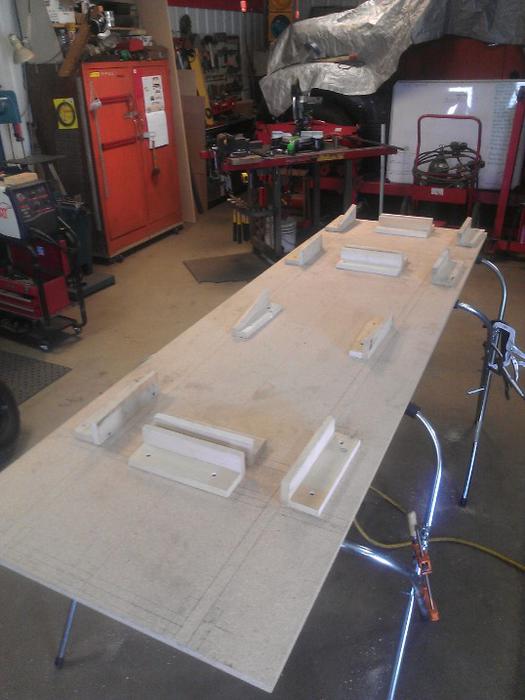

blocks screwed to the table

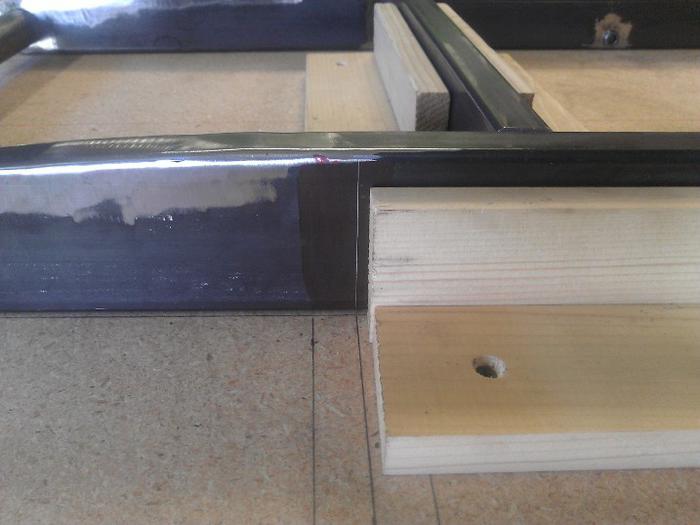

A witness line so it gets back in place
