Chrysler The Frame

Tuco Benedicto Pacifico Juan Maria Ramirez — Posted on The Cyclekart Club
Friday October 3, 2014 7:37 PM

The frame on the Chrysler is a built up channel, the top and bottom flanges are 1/8"x3/4" and the web is 16 gauge cold rolled steel. The Main depth mid span is 3.25" overall, this was based on the scale and also what I thought would match the tube steel that is used in the classic method. The car was drawn in cad so that the frame could be printed out on paper as a template full size, it was also beneficial to have a cad drawing in the garage during constriction.

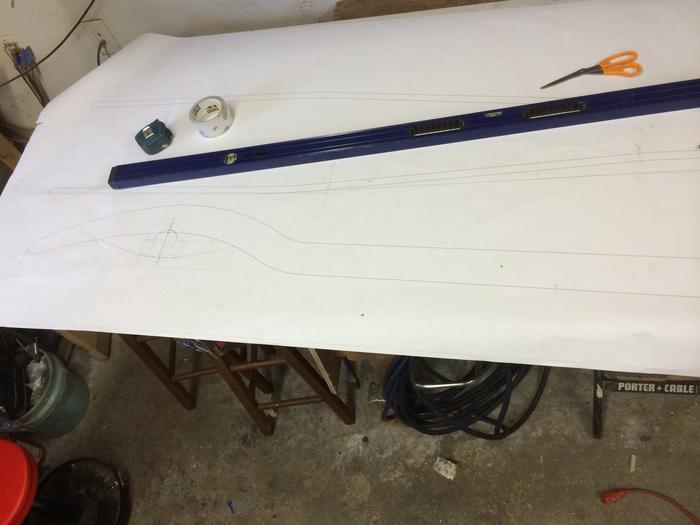

Full size plot

full size template, spray paint for lines. the same template was used for both sides and for the wood jig

Wood Jig with 1/8 flange getting pressed into place

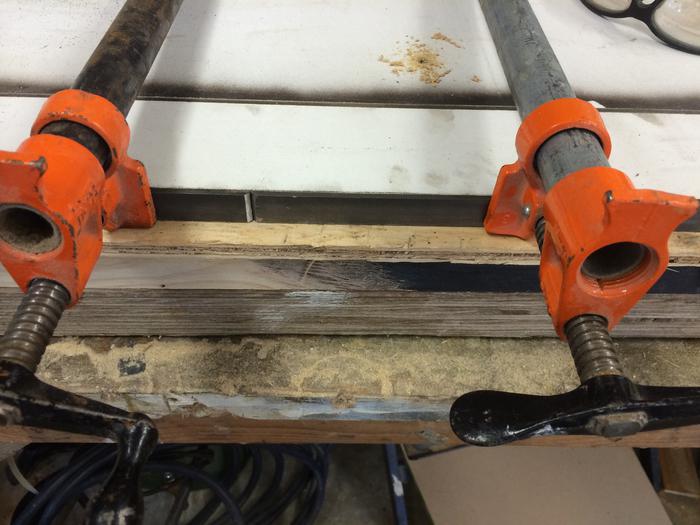

grind ends for weld

Member Comments on Journal Entry: Chrysler The Frame ↵

2022-12-07 07:12:19 # 84125

Comment by John Sabel

I like the rear break device on body. I guess his means Cyclekarts can use moveable spoilers in racing. I couldn't use moveable devices in SCCA racing. John
