The Frame Continued

Tuco Benedicto Pacifico Juan Maria Ramirez — Posted on The Cyclekart Club
Friday October 3, 2014 7:49 PM

Welding of the frame rails in the MDF jig. a LVL plank was leveled on the work bench and then the jig was built up on it. Using a wood jig for welding is not a good idea and it did catch on fire.

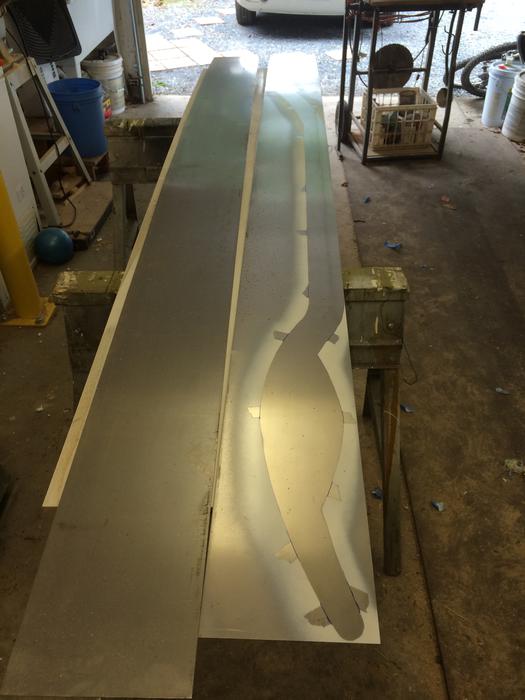

16 gauge web

Trim with jig saw, angle grinder and skill saw

Inflection point in frame

clamp and stitch weld

Member Comments on Journal Entry: The Frame Continued ↵

2014-10-07 07:30:30 # 20815

Comment by Charles Brackenbury

Looks like a good, low tech process to produce a very nice result. Did you have to heat the flange before you pressed it into the jig, or was the clamp pressure enough? You day that wood wasn't such a great material to use for the jig, but as long as you're prepared with a bucket of water nearby, it seems like probably the best way to go.
