Dash And Gauges

Brian C — Posted on The Cyclekart Club
Sunday October 11, 2015 12:07 PM

Worked on the dash and gauges this week.
Installed a kill switch on dash as well as the speedometer, clock and outside
temp. the lamp will be a low oil warning but will not kill the engine. If it works I will share the circuit on the tech forum. also need to work out the drive part of the speedometer. I will also have a choke pull. Knob is a place holder for now.

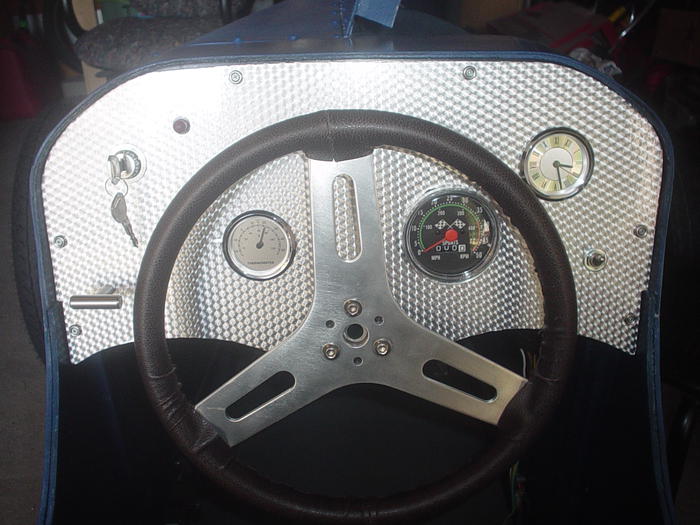

Dash sofar

Member Comments on Journal Entry: Dash And Gauges ↵

2015-10-16 13:05:30 # 29800

Comment by John Owens

Nice looking dash! I always liked the look of engine turned aluminum.

2015-10-17 08:52:32 # 29824

Comment by Bryan Dickerson

Wow, your dash looks great! Please take this as a compliment, but the store bought steering wheel doesn't do your dash justice.

2015-10-18 11:34:21 # 29846

Comment by Brian C

Sorry to disappoint you guys, and I am planning to make this out of aluminum and engine turn it, but this is a self stick sheet of engine turning over wood. I need to get a better drill press because my first attempts at engine turning where uneven because the shaft is a bit loose.

2015-10-18 13:15:00 # 29850

Comment by John Owens

I'm devastated, ruined my whole day! LOL

2015-10-18 15:02:19 # 29853

Comment by Brian S

Really nice job Brian C,,you must be a bit of an electrical wizz..Well done.B.

2015-10-19 15:12:30 # 29878

Comment by Brian C

Thanks guys,The keyed switch on left and the kill switch on the right are wired in parallel so I can keep it from starting without key, or kill engine by turning off one or the other. Still working on drive for the speedometer will change face of gauge to calibrate speed. thats the plan.
